Home/Our Products/CreeperX Mini

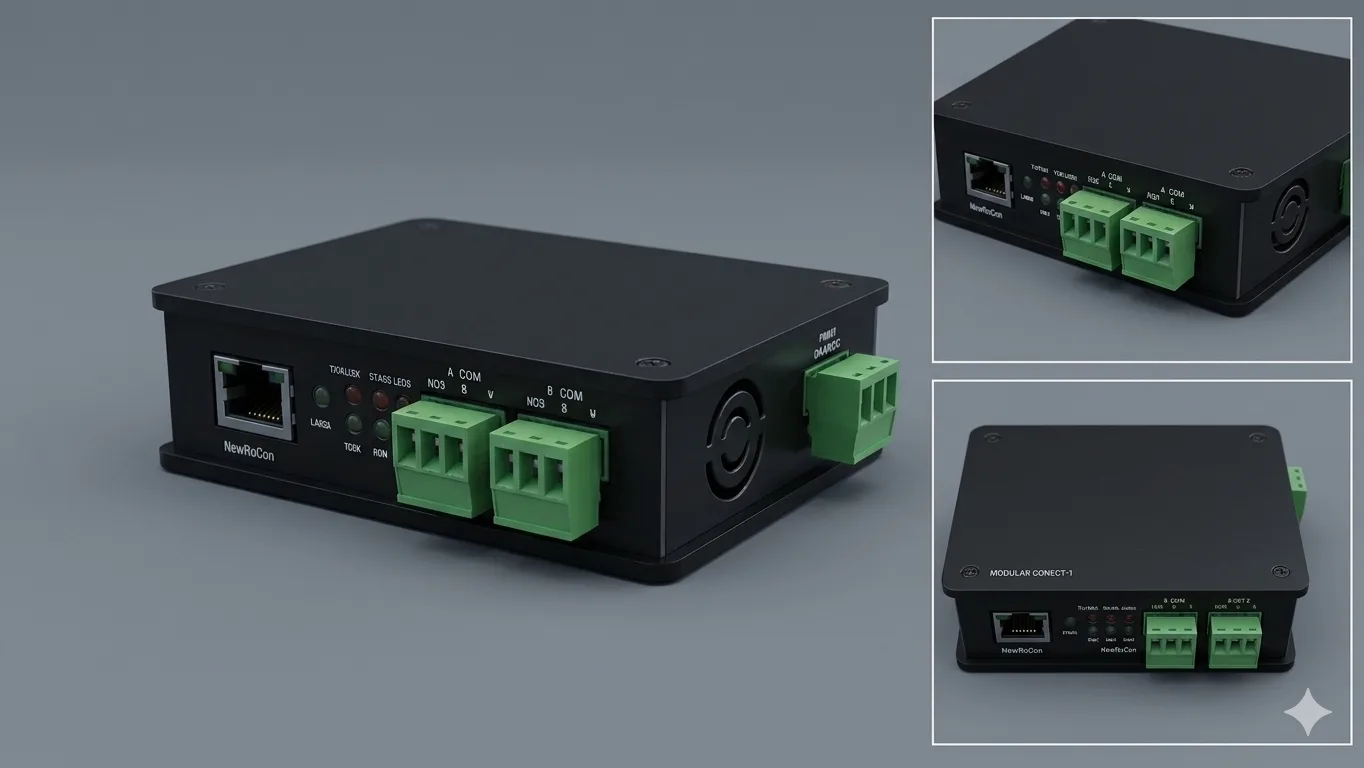

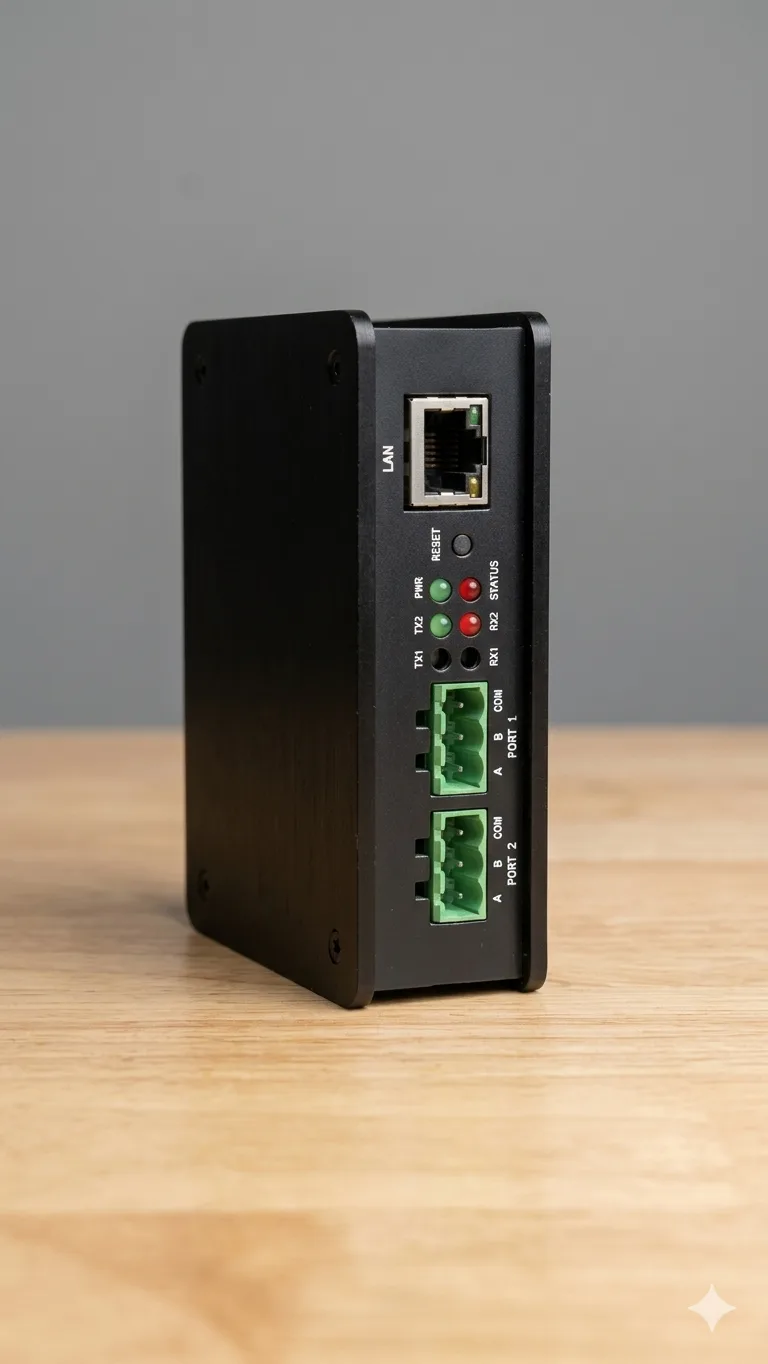

CreeperX Mini
Compact DIN-rail Modbus RTU to Modbus IP router.
The CreeperX Mini is a compact, industrial-grade Modbus RTU to Modbus IP router designed for building management and automation systems. Mounted on a standard 35mm DIN rail, it bridges RS-485 field devices to Ethernet-based supervisory systems with ease. Available in single-port (NS-510) and dual-port (NS-520) variants.
Key Specs
Technical Specifications
| Hardware | |
| Processor | Microprocessor @ 240 MHz |
| Memory | 8 MB Flash |
| Communication | |
| Ethernet | 10/100 Mbps |
| RS-485 | 2-wire, 3KV isolated |
| Protocol | Modbus RTU ↔ Modbus TCP/IP |
| Baud Rates | 9600, 19200, 38400, 76800, 115200 bps |
| Parity | None, Even, Odd |
| RS-485 Ports | 1 (NS-510) or 2 (NS-520) |
| Power | |
| DC Input | 9–36V DC |
| AC Input | 12–24V AC |
| Max Power | 18W |
| Mechanical | |
| Enclosure | Aluminium |
| Mounting | 35mm DIN Rail |
| Dimensions | 113.20 × 77.80 × 32.64 mm |
| Environmental | |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -20°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Compliance | |
| Emission | EN61000-6-3 |
| Immunity | EN61000-6-2 |
| Safety | EN61010-1 / UL916C |
| Product | EN61326-1, RoHS compliant |
