CreeperX ProMax
Modbus / BACnet GatewayIn Stock

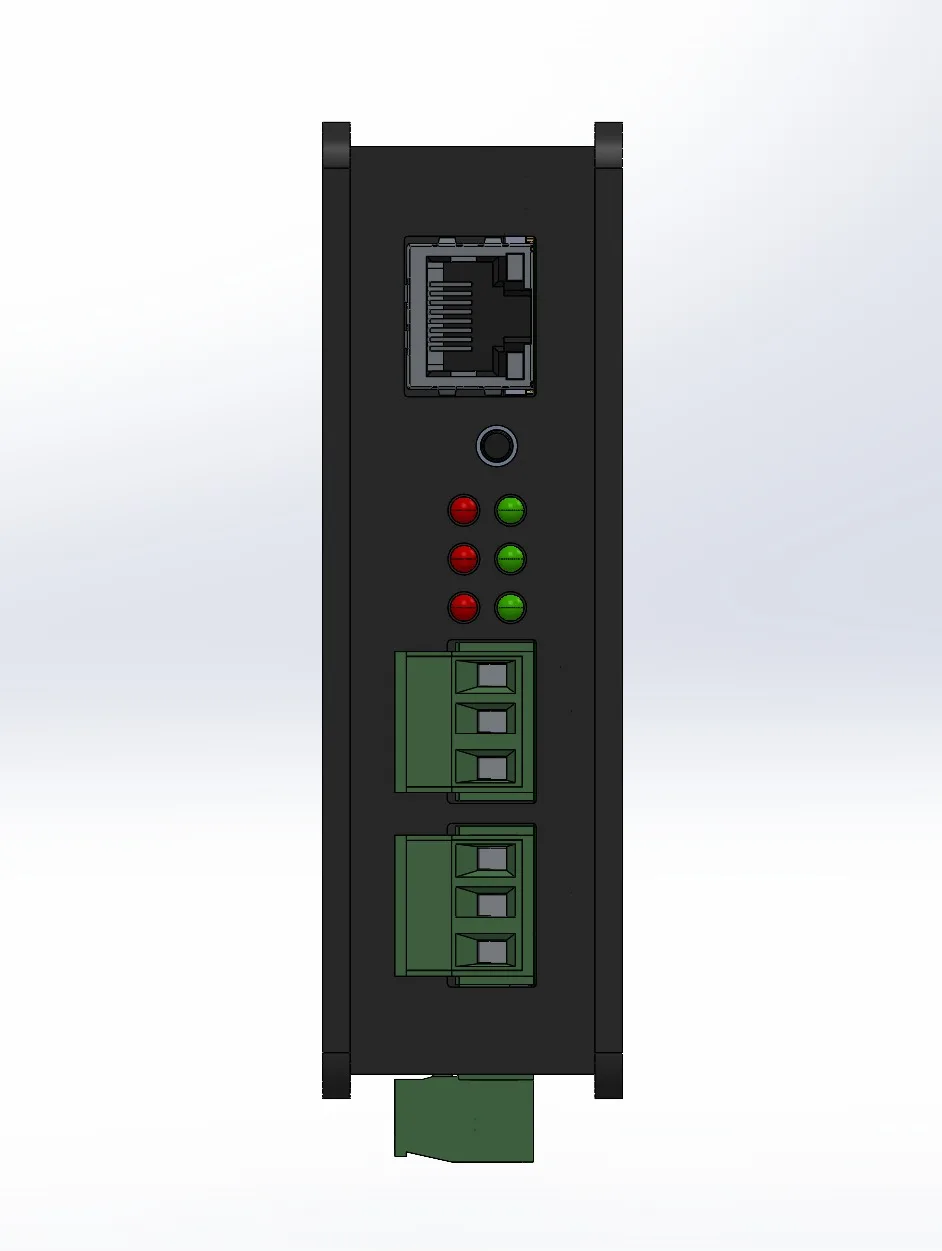

CreeperX ProMax

Multi-protocol Modbus and BACnet gateway for BMS integration.

The CreeperX ProMax is a high-performance Modbus/BACnet protocol gateway built on an ARM Cortex-A7 processor with 512MB RAM and 4GB eMMC storage. It supports six bidirectional protocol conversion configurations between Modbus RTU, Modbus IP, BACnet MSTP, and BACnet IP — making it the go-to bridge for complex building management systems. Available in single-port (NS-MBGW-001) and dual-port (NS-MBGW-002) variants.

Key Specs

Modbus ↔ BACnetARM Cortex-A7 @ 528 MHz10/100 Mbps Ethernet3KV Isolated RS-4859–36V DC / 12–24V ACDIN Rail MountRoHS compliant
EnquireDatasheet

Technical Specifications

Hardware
ProcessorARM Cortex-A7 @ 528 MHz
RAM512 MB DDR3
Storage4 GB eMMC
Protocol Support
Supported ConversionsModbus RTU ↔ BACnet IP, BACnet MSTP ↔ BACnet IP, Modbus RTU ↔ Modbus IP, Modbus IP ↔ BACnet IP, BACnet IP ↔ Modbus IP, BACnet MSTP ↔ Modbus IP
Communication
Ethernet10/100 Mbps
RS-4852-wire, 3KV isolated
RS-485 Ports1 (NS-MBGW-001) or 2 (NS-MBGW-002)
Baud Rates9600, 19200, 38400, 76800, 115200 bps
ParityNone, Even, Odd
ConfigurationWeb interface
Power
DC Input9–36V DC
AC Input12–24V AC
Max Power18W @ 24V DC
Mechanical
EnclosureAluminium
Mounting35mm DIN Rail
Dimensions113.20 × 77.80 × 32.64 mm
Environmental
Operating Temperature0°C to +85°C
Storage Temperature-20°C to +85°C
Humidity95% RH, non-condensing
Compliance
EmissionEN61000-6-3
ImmunityEN61000-6-2
SafetyEN61010-1 / UL916C
ProductEN61326-1, RoHS compliant

Related Products

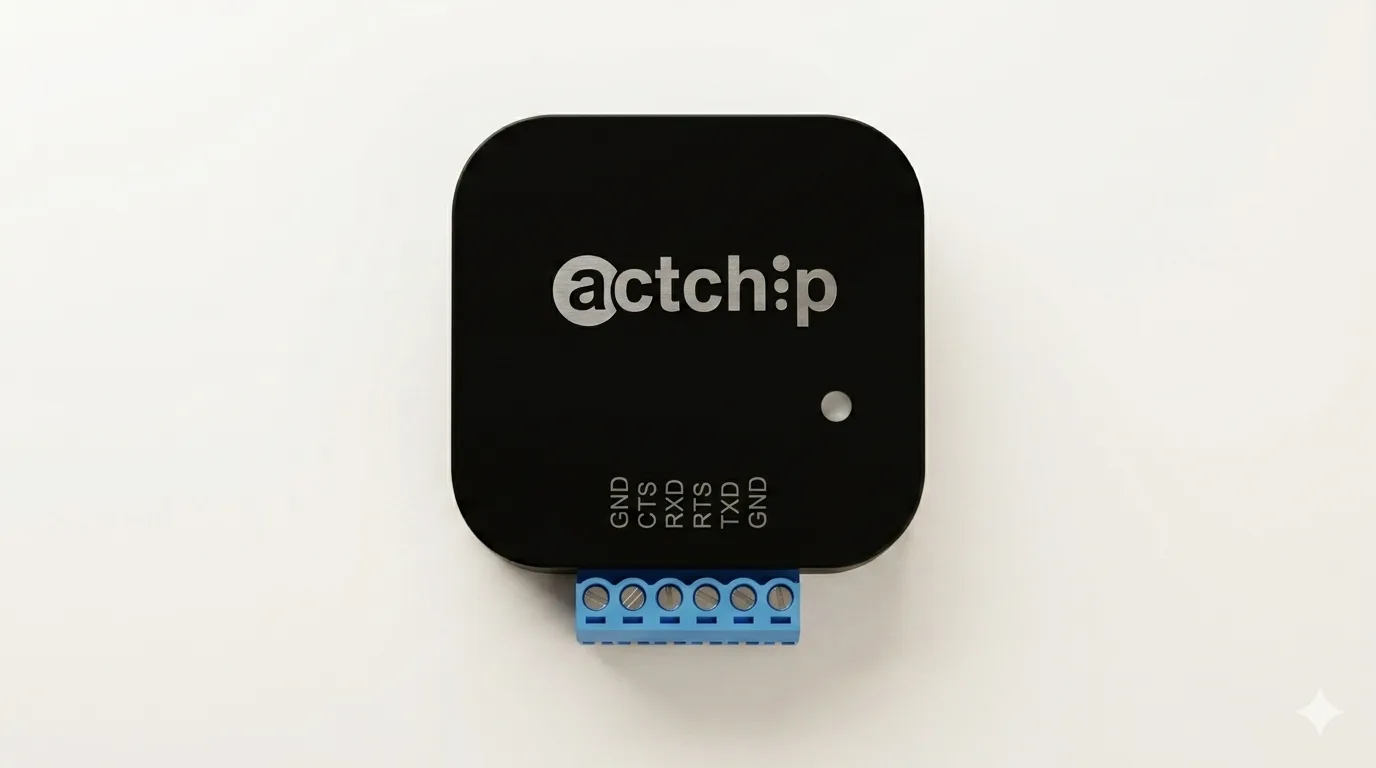

CreeperLeaf USB-RS485 — Industrial-grade isolated USB to RS485/RS422 converter.
USB / Serial Converter

CreeperLeaf USB-RS485

Industrial-grade isolated USB to RS485/RS422 converter.

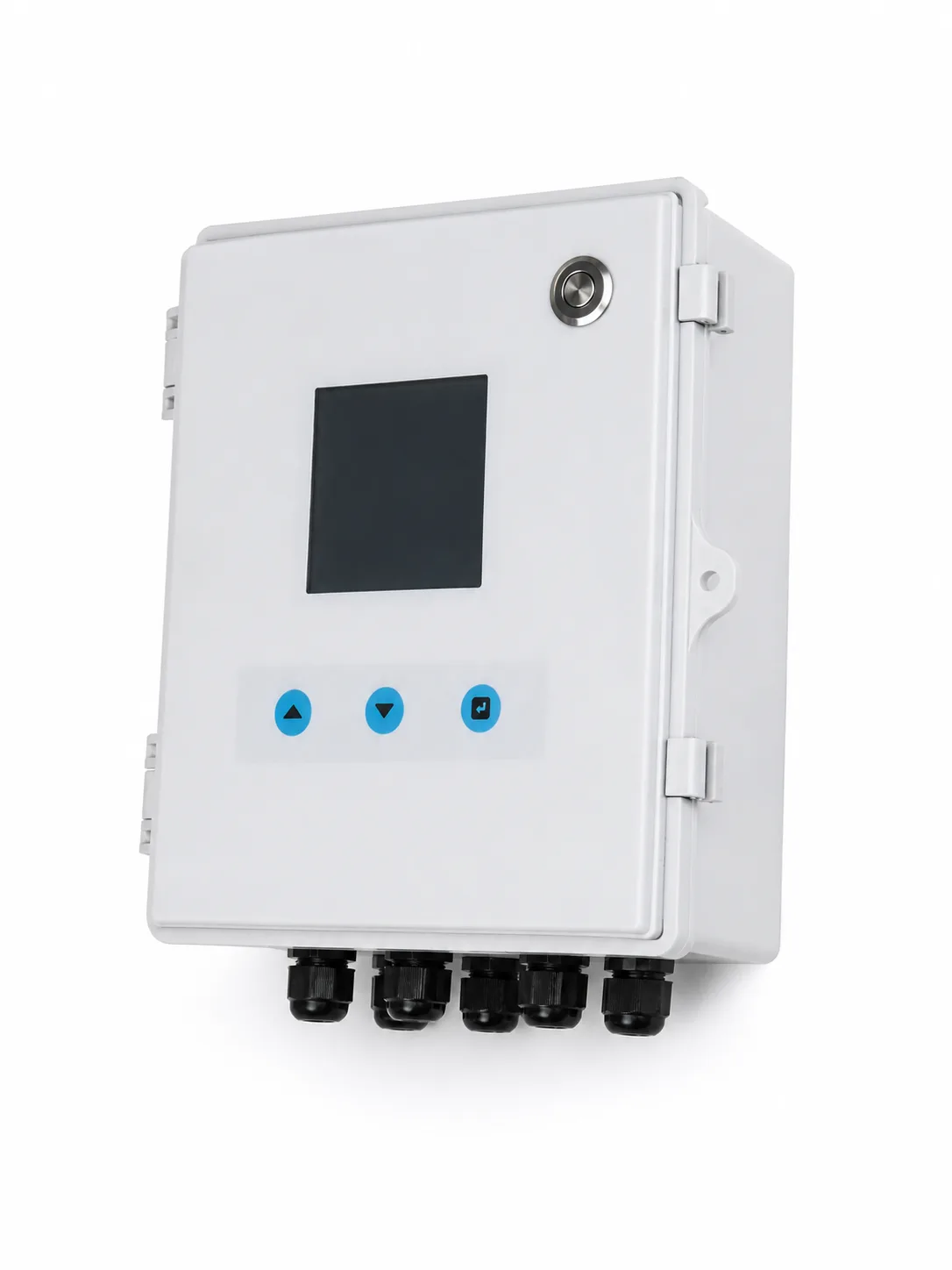

CreeperX IIoT Controller — Industrial IoT edge controller with multi-interface connectivity and configurable I/O.
IIoT Edge Controller

CreeperX IIoT Controller

Industrial IoT edge controller with multi-interface connectivity and configurable I/O.

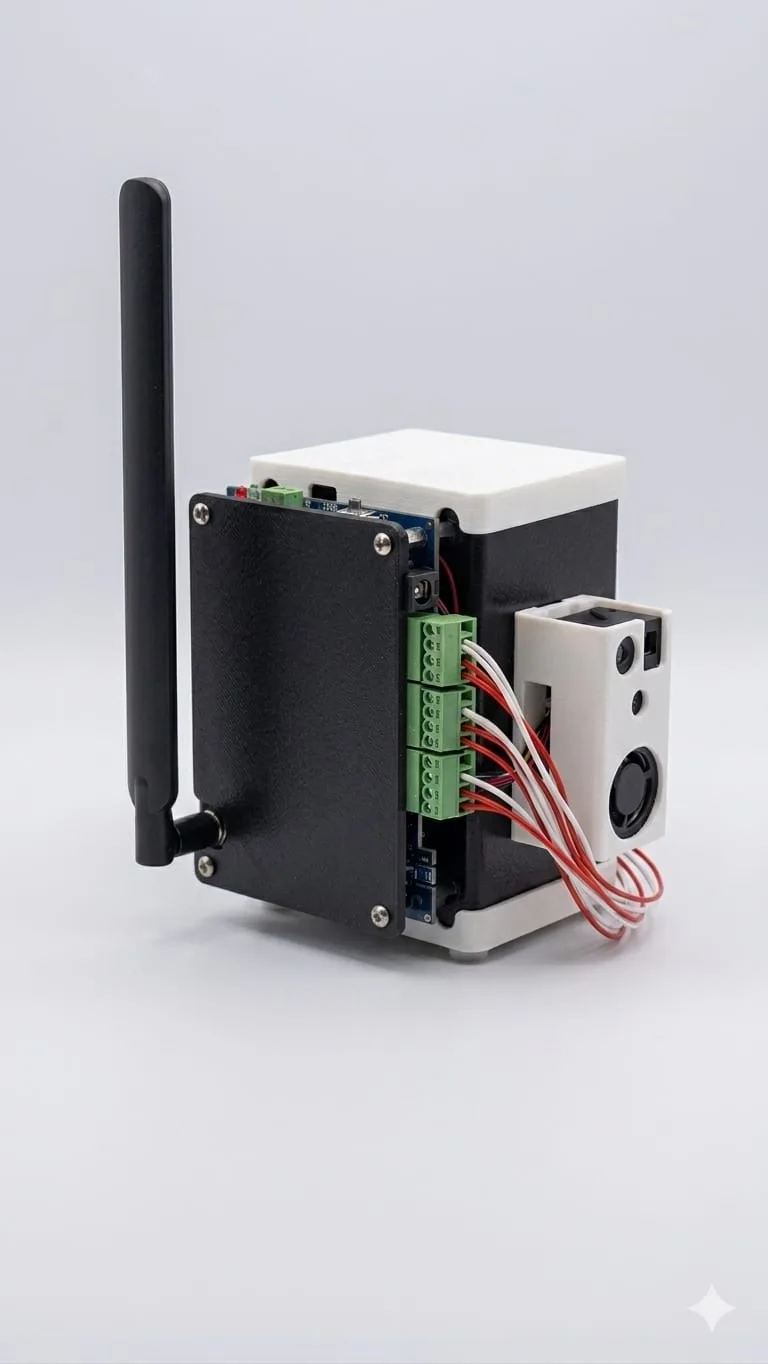

CreeperXSense IoT Hub — Multi-parameter air quality and environmental IoT sensing platform.
Environmental Sensor Hub

CreeperXSense IoT Hub

Multi-parameter air quality and environmental IoT sensing platform.

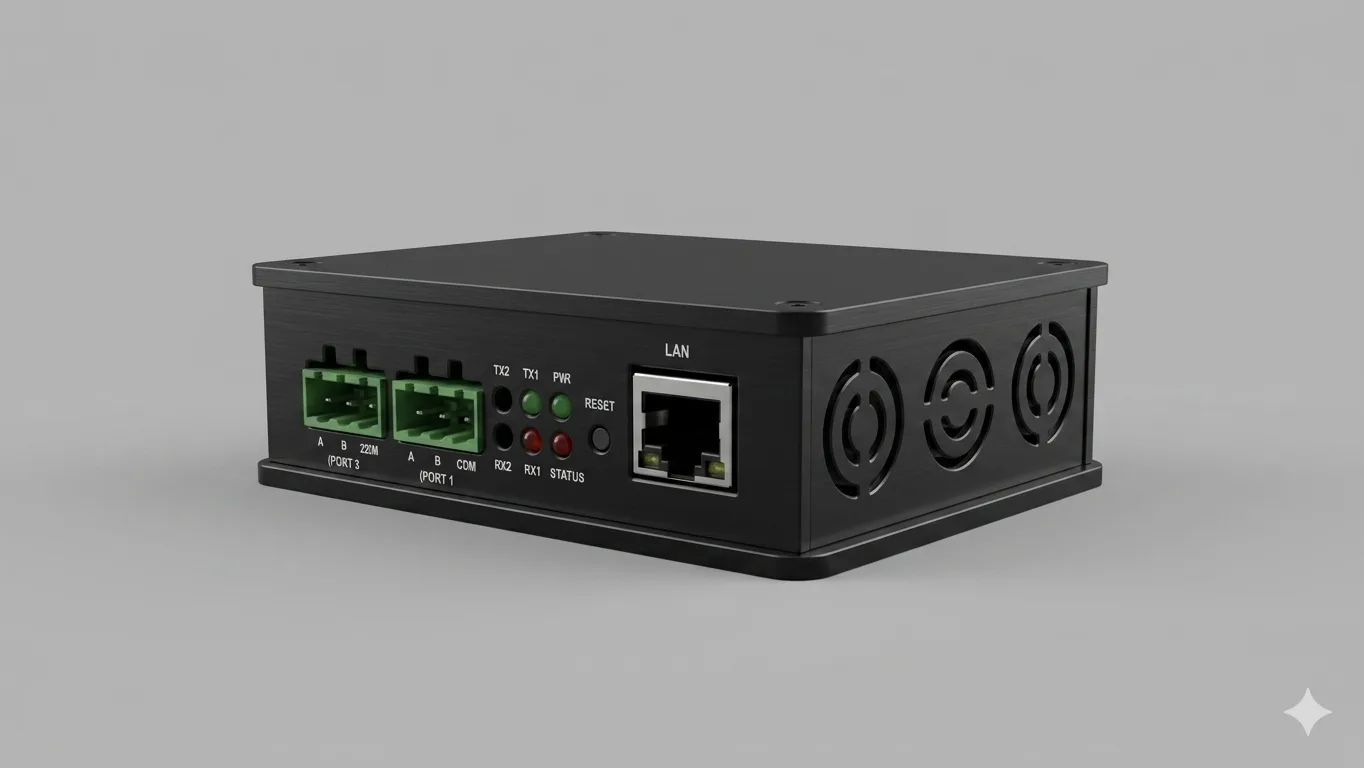

CreeperX Mini — Compact DIN-rail Modbus RTU to Modbus IP router.
Modbus Router

CreeperX Mini

Compact DIN-rail Modbus RTU to Modbus IP router.

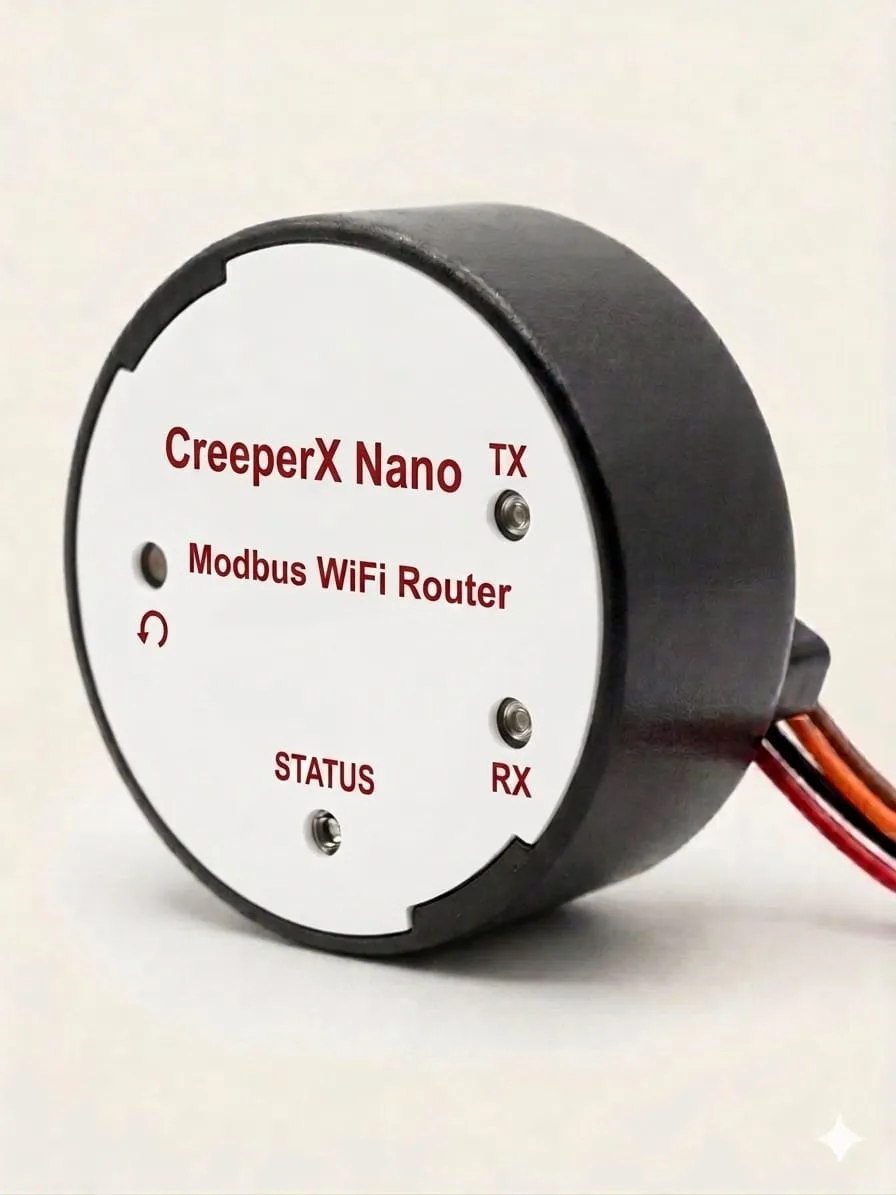

CreeperX Nano — Thumb-sized wireless Modbus RTU to Modbus IP router.
Modbus Router

CreeperX Nano

Thumb-sized wireless Modbus RTU to Modbus IP router.

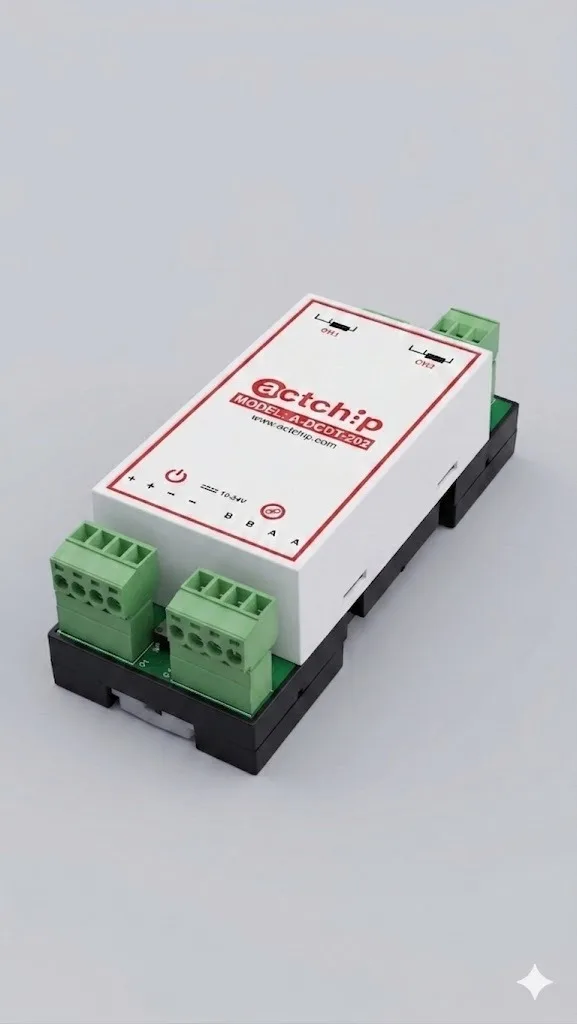

CreeperXSense RTD — Dual-channel PT-100 RTD transmitter with RS-485 Modbus output.
